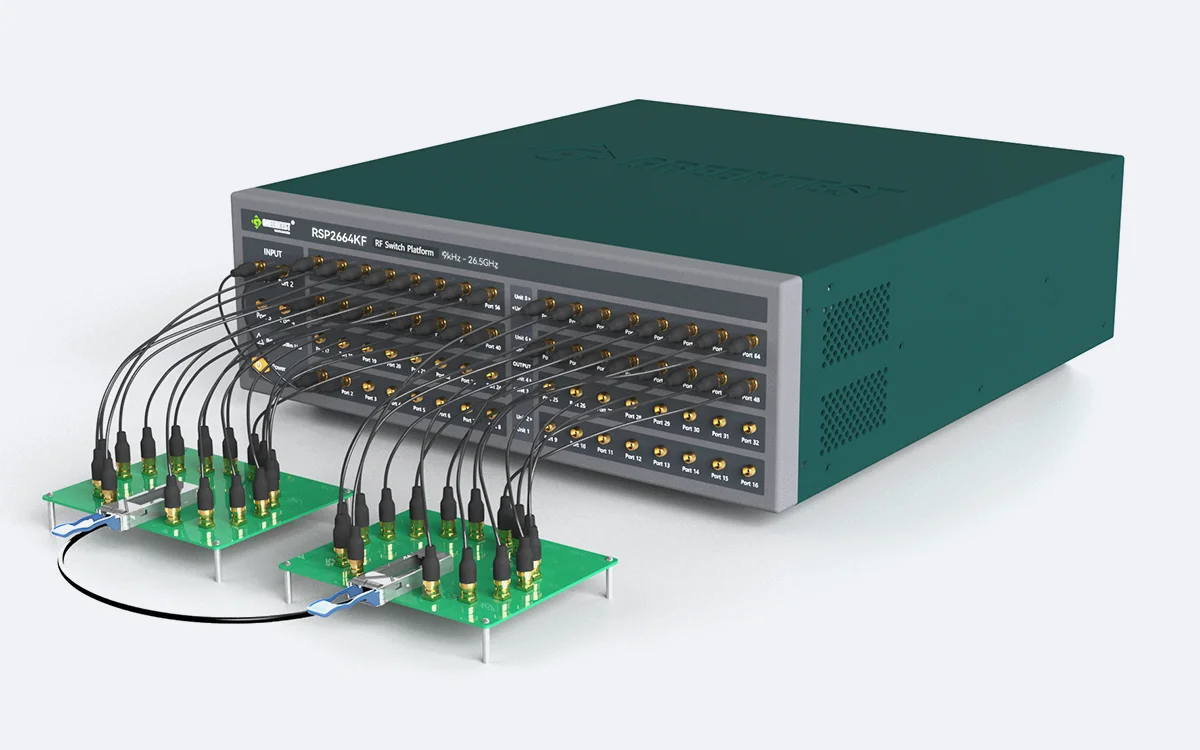

The RSP26xx series RF switch system covers a frequency range from 9 kHz to 26.5 GHz and features a non-full-cross switch matrix design, making it suitable for automated testing scenarios. The system has a standard 3U chassis height and supports standard 19-inch rack mounting, facilitating integration and space-saving. When combined with a Vector Network Analyzer (VNA), the system can provide a multiport VNA solution, widely used for multi-DUT (Device Under Test) or multi-port measurements, and is particularly well-suited for TDR (Time Domain Reflectometry) testing of PCBs or wiring harnesses.
PDF 301K
The operating frequency range is from 9kHz to 26.5GHz, supporting 2/4-port input. The 8 to 64-port output can be modularly expanded according to requirements.
Equipped with fast switching capability to ensure efficient testing.
The switch has a long service life, reducing maintenance frequency and lowering overall testing costs.
Provides extremely high isolation to reduce crosstalk in high-density ATE (Automatic Test Equipment) systems.
Equipped with stable temperature control function to ensure the system's stability in various working environments.
RSP26xxK/RSP26xxKF series RF switch systems are widely used in various radio frequency (RF) applications, including but not limited to:
The following specifications describe the guaranteed performance of the instrument. Supplementary and typical characteristics provide information useful for instrument application, showing typical but non-guaranteed performance parameters.
| RSP26xxK/RSP26xxKF Series RF Switch Systems, Non-Full Cross-Connect Matrix | |
|---|---|
| RSP2608K | Frequency Range: 9 kHz to 26.5 GHz, 2-port Input, 8-port Output, 2.92mm (f) |
| RSP2616K | Frequency Range: 9 kHz to 26.5 GHz, 2-port Input, 16-port Output, 2.92mm (f) |
| RSP2624K | Frequency Range: 9 kHz to 26.5 GHz, 2-port Input, 24-port Output, 2.92mm (f) |
| RSP2632K | Frequency Range: 9 kHz to 26.5 GHz, 2-port Input, 32-port Output, 2.92mm (f) |
| RSP2616KF | Frequency Range: 9 kHz to 26.5 GHz, 4-port Input, 16-port Output, 2.92mm (f) |
| RSP2632KF | Frequency Range: 9 kHz to 26.5 GHz, 4-port Input, 32-port Output, 2.92mm (f) |
| RSP2648KF | Frequency Range: 9 kHz to 26.5 GHz, 4-port Input, 48-port Output, 2.92mm (f) |
| RSP2664KF | Frequency Range: 9 kHz to 26.5 GHz, 4-port Input, 64-port Output, 2.92mm (f) |
| Specifications | RSP2608K | RSP2616K | RSP2624K | RSP2632K |
|---|---|---|---|---|
| Operating Frequency | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz |
| Configuration | 2xSP4T | 2xSP8T | 2xSP12T | 2xSP16T |
| Input Ports | 2-port | 2-port | 2-port | 2-port |
| Output Ports | 8-port | 16-port | 24-port | 32-port |
| Isolation (dB) | 50dB | 50dB | 50dB | 50dB |
| Insertion Loss (dB) Port (n) to Channel (n) | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB |
| Typical Temperature Stability -20 to 30°C (Amplitude dB/°C) | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 |
| Typical Input P1dB | +23dBm | +23dBm | +23dBm | +23dBm |
| Maximum Input Power | 32dBm | 32dBm | 32dBm | 32dBm |
| Switching Time (Tsw) | 30us | 30us | 30us | 30us |
| RF Connectors | 2.92mm (f) | 2.92mm (f) | 2.92mm (f) | 2.92mm (f) |
| Specifications | RSP2616KF | RSP2632KF | RSP2648KF | RSP2664KF |
|---|---|---|---|---|
| Operating Frequency | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz | 9 kHz to 26.5 GHz |
| Configuration | 4xSP4T | 4xSP8T | 4xSP12T | 4xSP16T |
| Input Ports | 4-port | 4-port | 4-port | 4-port |
| Output Ports | 16-port | 32-port | 48-port | 64-port |
| Isolation (dB) | 50dB | 50dB | 50dB | 50dB |
| Insertion Loss (dB) Port (n) to Channel (n) | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB | 9kHz-12GHz: 6dB 12GHz-24GHz:7.4dB 24GHz-26.5GHz:8.4dB |
| Typical Temperature Stability -20 to 30°C (Amplitude dB/°C) | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 | 9 kHz to 1GHz: 0.01 1GHz to 6GHz: 0.012 6 to 8 GHz: 0.016 8 to 18 GHz: 0.02 18 to 26.5 GHz: 0.024 |
| Typical Input P1dB | +23dBm | +23dBm | +23dBm | +23dBm |
| Maximum Input Power | 32dBm | 32dBm | 32dBm | 32dBm |
| Switching Time (Tsw) | 30us | 30us | 30us | 30us |
| RF Connectors | 2.92mm (f) | 2.92mm (f) | 2.92mm (f) | 2.92mm (f) |
Designed for indoor use and suitable for environments with low condensation. They fully comply with the operating environment specifications of Lvce Technology products. The following is an overview of the environmental specifications for these products.
| Specification Item | Description |
|---|---|
| Temperature | |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | |
| Operating Humidity | 95% Relative Humidity at 40°C (no condensation) |
| Shock | |
| User Handling | ΔV: 3 m/s (60 in/s) ±5%, Duration < 3ms |
| Transportation Shock | 50G, ΔV: 8 m/s ±10% |
| Vibration | |
| Operating Vibration | Random Vibration: 0.3 Grms |
| Survival Vibration | Random Vibration: 2.41 Grms |
| Altitude | |
| Operating Altitude | < 3,000 meters (< 9,842 feet) |
Version: 2025
